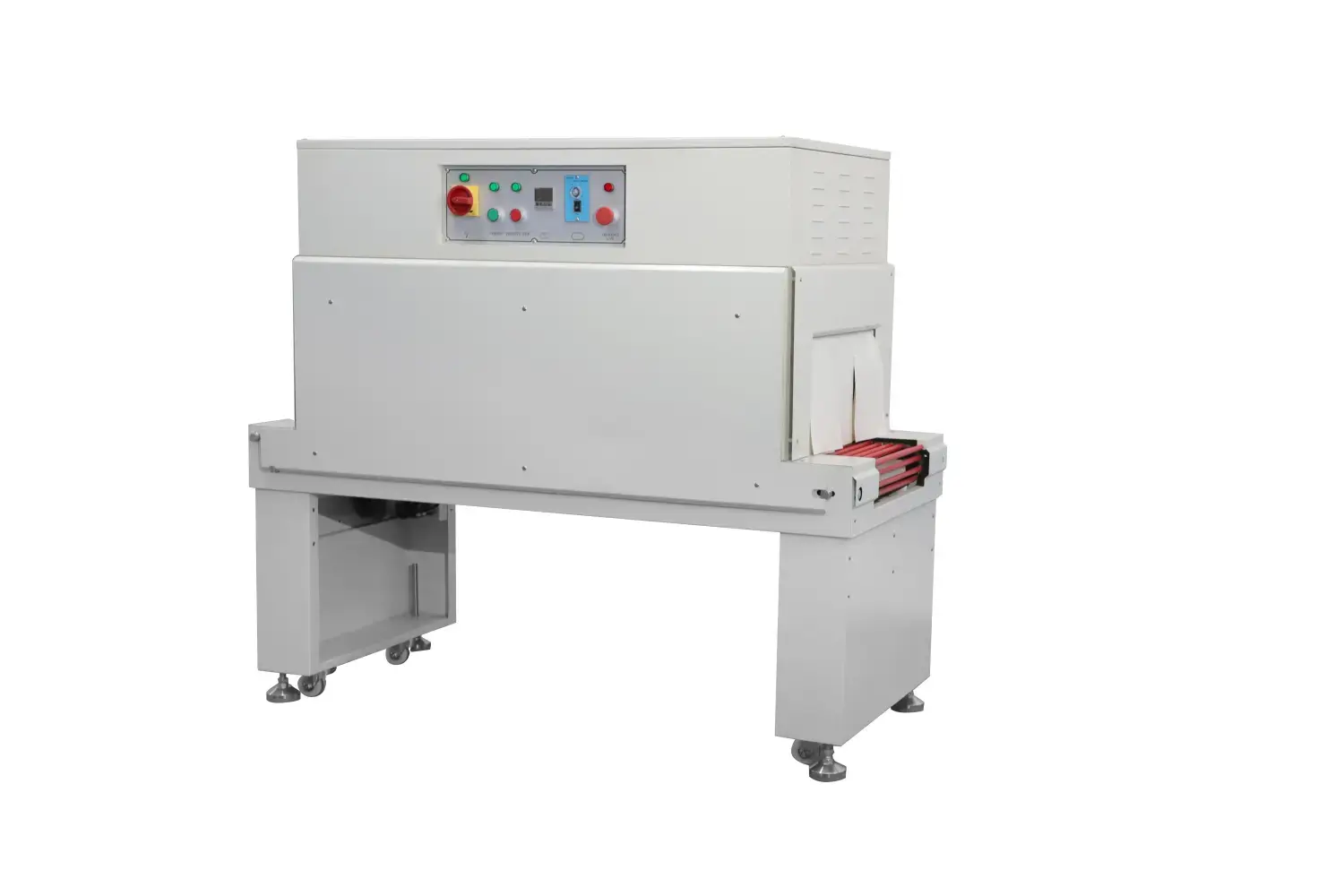

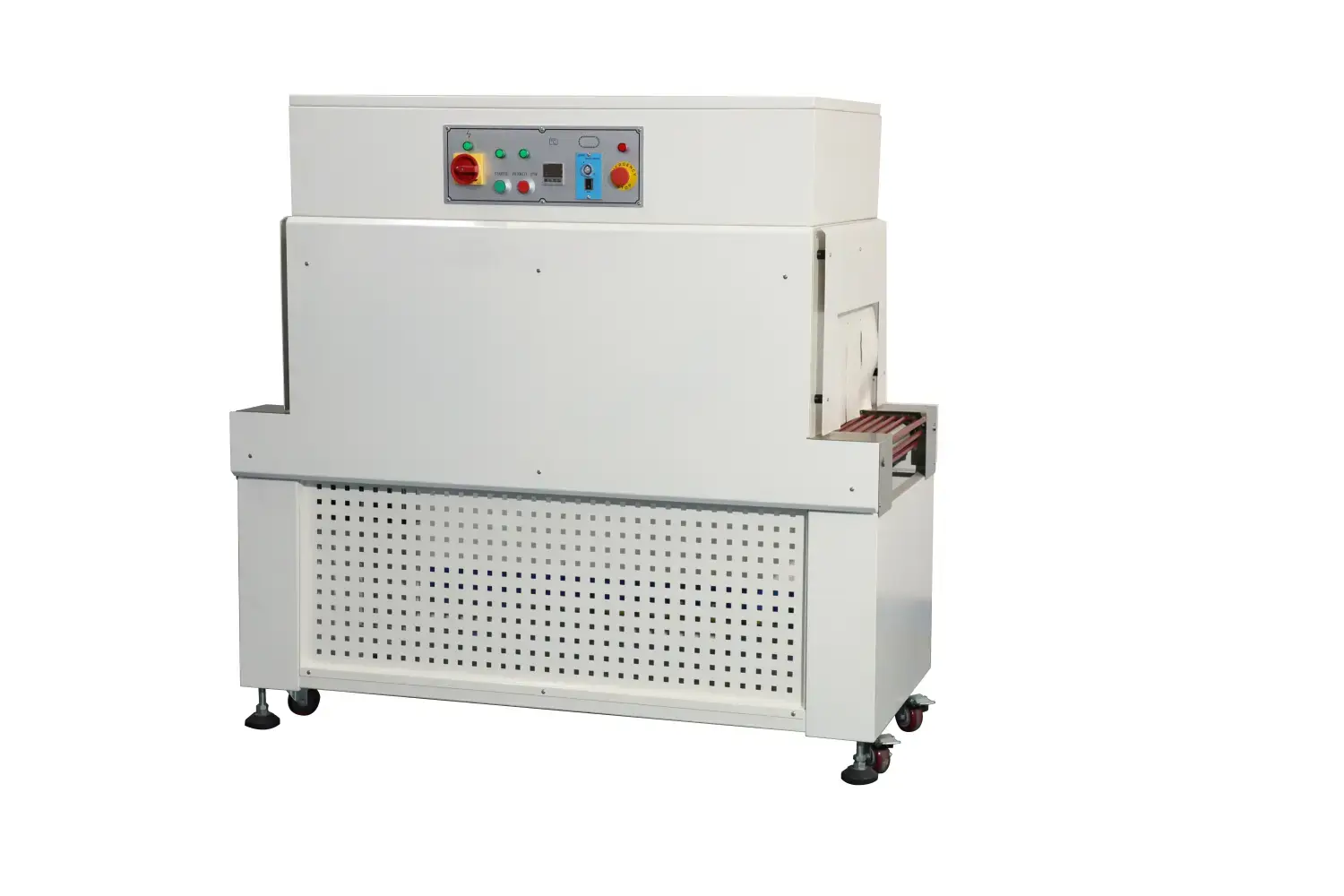

Standard shrink heat tunnel XFY-SJ400
The high-efficiency and energy-saving shrink oven XFY-S450/S550/S650/S800 and the standard shrink oven XFY-SJ400 adopt a roller conveyor belt to make the product heated more evenly during the heat shrinkage process; operators can adjust the left and right air flow direction and bottom air flow according to the product shape to make the sealing line and sealing corner more refined and improve product packaging quality; the machine uses super strong heat-insulating fiber materials and frequency conversion constant temperature design to greatly reduce power consumption and achieve energy saving effect, and is equipped with an explosion-proof glass observation window to observe the shrinkage of products in the furnace in real time.
The roller conveyor belt is used to make the product heat more evenly during the heat shrinkage process, and the operator can adjust the left and right airflow guide and bottom air flow according to the product shape, which can make the sealing line and the sealing angle more refined and improve the quality of product packaging. The machine adopts ultra-strong thermal insulation fiber material and adopts frequency conversion constant temperature, so that the machine can greatly reduce power consumption and achieve energy saving effect. With explosion-proof glass observation window, the shrinkage of products in the furnace can be seen.
| 型号 Model | XFY-S450 | XFY-S550 | XFY-S650 | XFY-S800 | XFY-SJ400 |
| 包装速度Speed | 0-35m/min | 0-40/min | 0-35m/min | 0-40/min | 0-30m/min |
| 收缩槽尺寸 Shrinkage size | 1000 *450* 250 | 1500 x*540 *350 | 1700*630*350 | 1700*700*280 | 1200 *450 *250 |
| 电压及总功率Power | 380V/50HZ/9.6KW | 380V/50HZ /12KW | 380V/50HZ/20KW | 380V/50HZ/23KW | 380V/50HZ /10KW |
| 机器尺寸 Machine size | 1300 *920 *1130 | 2000*1070*1230 | 2200*1200*1230 | 2200*1250*1130 | 1500 * 705*1455 |
| 净重 Net weight | 350KG | 520KG | 310KG |
