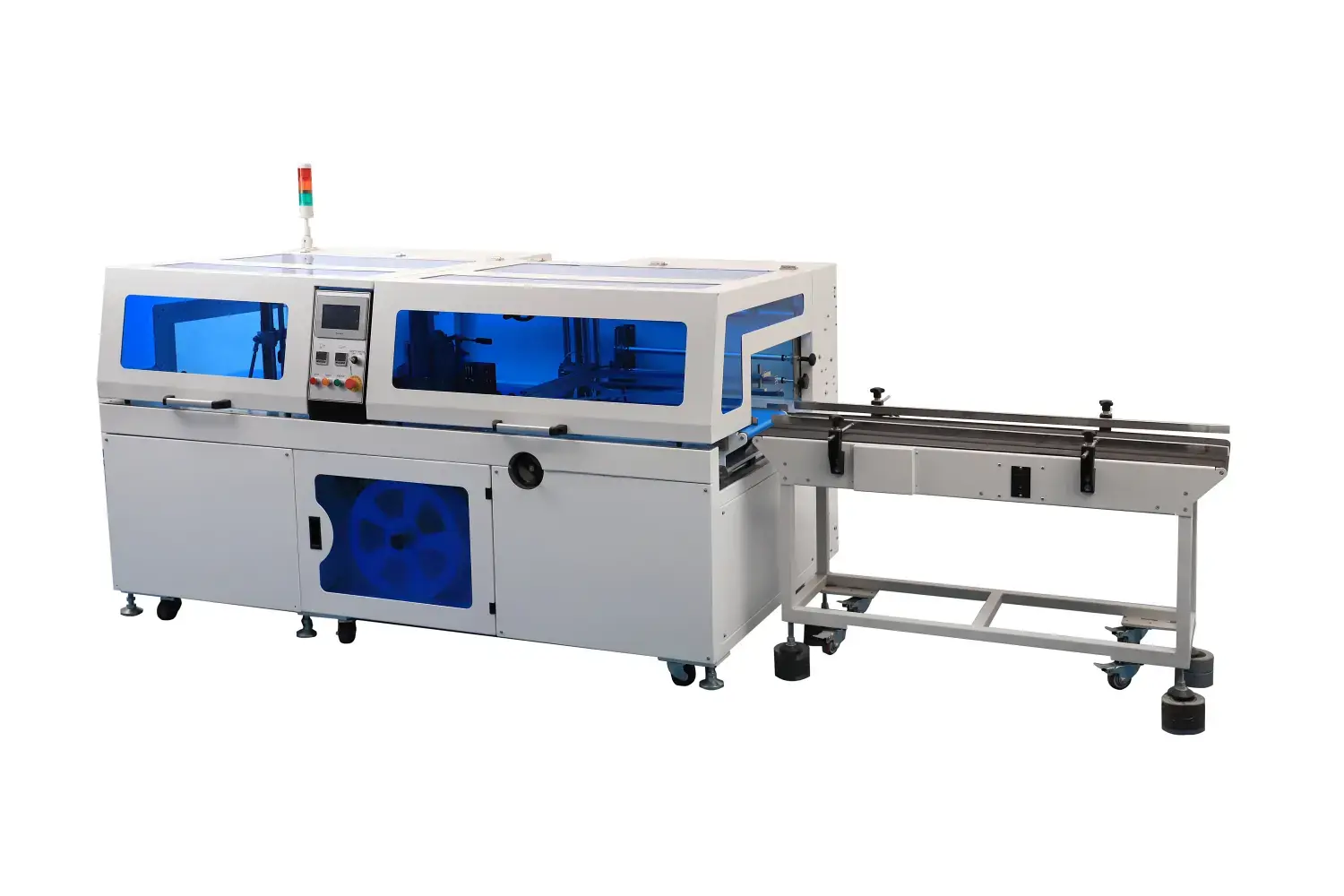

Full automatic continue bottom sealing machine XFY-Z240 XFY-Z360
The fully automatic continuous bottom sealing machine XFY-Z240/XFY-Z360 has a packaging speed of up to 80-100 pcs/min, can choose different feeding systems according to production needs, the conveyor belt can be easily connected to the existing production line and has multiple types to choose from, is equipped with a humanized touch screen design, supports convenient reading of product setting parameters from the touch screen memory, and its side sealing can adopt the new double-pressing wheel side sealing system to adapt to different packaging films, with stable and faster sealing and easy operation.
A. The packaging speed is up to 80-100 pcs/min
B. The front can choose different feeding systems according to production needs
C. The conveyor belt can be easily connected to the existing production line
D. Finger-push conveyor belt is mainly used for packaging and printing products, and it can be equipped with automatic paper feeding machine according to the needs of customers.
E. The guide rail push rod conveyor belt is suitable for combined packaging and can be customized according to the product size and shape, with a wide range of applications.
F. Through the humanized touch screen design, the operation is easier
G. Product setting parameters can be conveniently read from the touch screen memory.
H. Side sealing can use the new double-pressing wheel side sealing system to adapt to different packaging films, sealing more stable and faster.
| Model | XFY--240 | XFY-360 |
| Machine size L*W*H（mm） | 6370 x 1190 x 1650mm | 6020 x 1310 x 1650mm |
| Sealing blade size W（mm) | 240 | 360 |
| Product size L*W*H（mm） | 100 -300*40-100 *20-100 | 100 -300*40 - 250*2-100 |
| Power | 1P/220V/50HZ /1.8Kw | 1P/220V/50HZ / 2Kw |
| Net weight | 1500KG | 1600KG |
