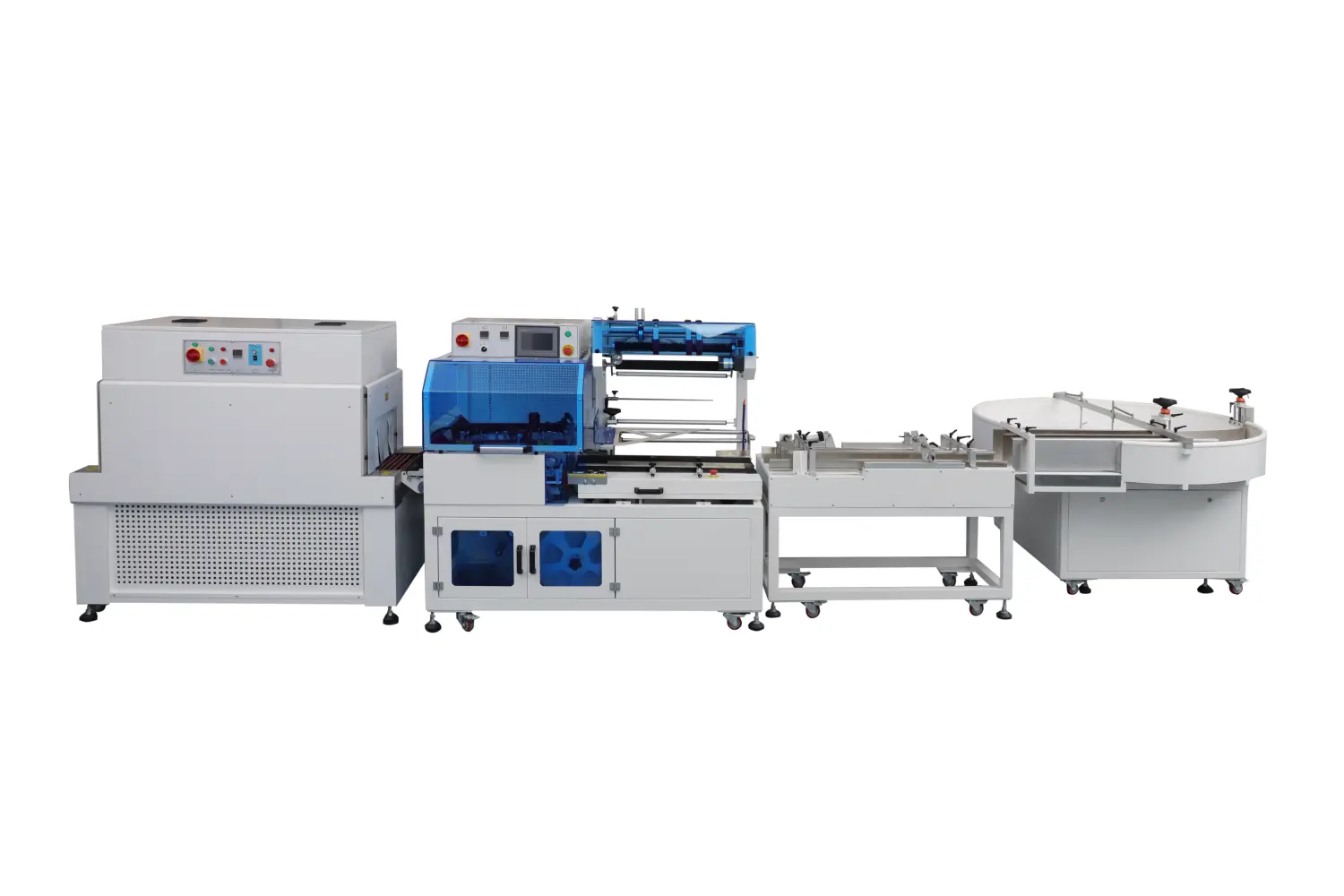

Full-automatic economic flat paved packing machine XFY-A5645+XFY-SJ400
The fully automatic economical flat packaging machine XFY-A5645+XFY-SJ400 is mainly used for flat packaging of various tapes such as OPP packing tape, can realize 8-roll, 6-roll and other multi-roll combined and single packaging, has advantages including tool-free width adjustment, stable sealing with solid aluminum knife rest, non-adhesive and durable feeding parts, can be connected to slitting machines to realize intermediate unmanned operation, and can be equipped with a high-efficiency and energy-saving shrink furnace.
Basic Use：
It should be mainly used in OPP packing tape packing, and can produce 8 volumes, 6 volumes, 4 volumes, 2 rolls of combined packaging and single roll packaging. It can also be used for packing cloth substrates, aluminum platinum, grid tape and so on.
Product characteristic：
- 6 rolls of flat paved packaging can be as fast as 20 packs per minute, 35 packs/min for single roll.
- It is easy to adjust the width and do not need any tools to change the required size quickly.
- The sealing knife is designed for integral knife and it is not easy to deform. Sealing position is stable and the sealing & cutting speed is fast
- High efficiency and energy saving shrinkage furnace can be selected to save electricity.
- The disk and push product belt are all made of non viscose Teflon material, which will never be viscose and durable.
- It can realize unmanned operation by connecting an automatic slitting machine to a manual one.
| Model | XFY-P1600 | XFY-CH450-1200 | XFY-A5645 | XFY-SJ400 |
| Shrinkage slot size | _____ | _____ | _____ | 1200x450x250 |
| Blade size | _____ | _____ | 565*460 | _____ |
| Packing material size | 150x2 | 150x2 | 80~550*50~459*2~180 | |
| 300（W）x200(H) | ||||
| Power | 1P 220V/50HZ /0.2KW | 1P 220V/150HZ /0.18KW | 1P 220V/50HZ /2.2kW | 3P 380V/50HZ /10KW |
| Machine size | 1756*1725*1145 | 1260*577*900 | 1795*880*1570 | 1500*705*1430 |
| Net weight | 290KG | 150KG | 360KG | 320KG |
